Aluminum Honeycomb Core

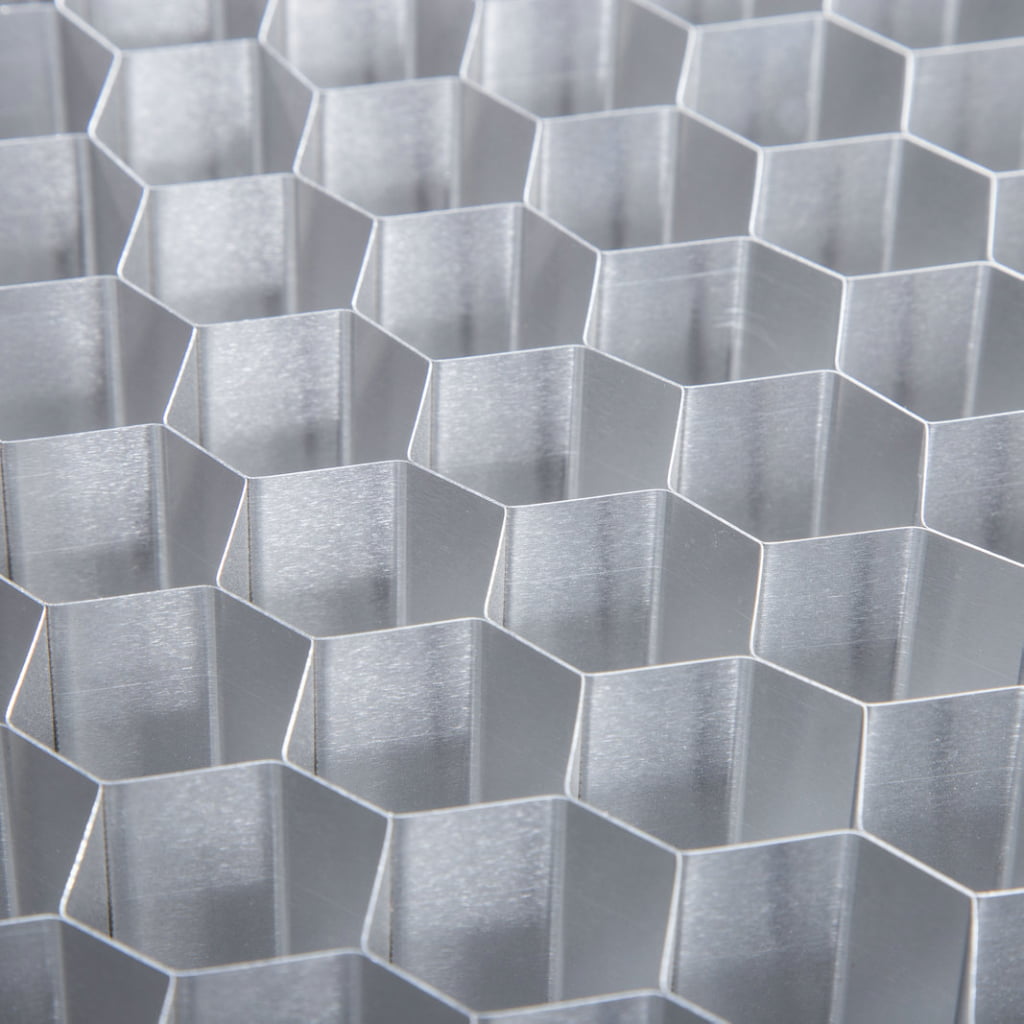

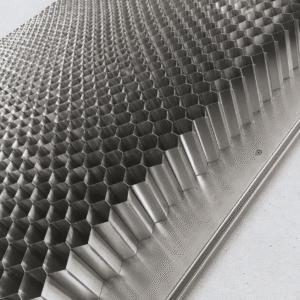

Aluminum honeycomb core is a lightweight metallic core material made from aluminum foil and expanded into a regular hexagonal cell structure. It offers a high strength-to-weight ratio, good rigidity, dimensional stability, and reliable compression and shear performance for lightweight sandwich structures.
It is commonly used in architectural and cleanroom panels, transportation and marine structures, and other industrial sandwich applications. Mex-core supplies multiple alloy grades, cell sizes, foil thicknesses, core thicknesses and dimensions, with perforated, unperforated and cut-to-size options available for project requirements.
Custom Specifications
Specifications, dimensions, structure, and processing requirements can be customized according to your project.
Key Features
Stable Geometry, Flexible Specifications, Reliable Processing
- Lightweight metallic honeycomb structure
- High strength-to-weight performance
- Good rigidity and dimensional stability
- Good compression and shear performance
- Efficient load distribution in sandwich structures
- Good energy absorption and impact resistance
Technical Data
Honeycomb Core Specifications
Review the available material, cell, thickness, density, dimensional, and supply-form parameters for this honeycomb core.
| Parameter | Value | Note |
|---|---|---|
| Perforation | Perforated / Unperforated | |
| Alloy Grade | 3003 / 5052 | |
| Cell Size |
Inch: 1/4" / 1/3" / 3/8" / 1/2" / 3/4" / 4/5" / 1" Metric: 6.4 / 8.5 / 9.5 / 12.7 / 19 / 20 / 25 mm |
Custom sizes available |
| Foil Thickness | 0.04 / 0.05 / 0.06 / 0.07 / 0.08 mm | Custom options available |
| Core Thickness | Custom: 2-590 mm | |
| Standard Dimensions | 1220×2440 / 1500×3000 mm | Custom sizes available |
| Cutting Tolerance | ±0.1 mm | |
| Supply Form | Block / Slice / Sheet | Available according to order requirements |
Quality & Documentation
Product-Specific Checks and Technical Documents
Each order is checked against the confirmed material specifications, dimensions and processing requirements. Relevant material documents, inspection information and technical files are available according to project requirements.
- Incoming raw material documentation is checked before production.

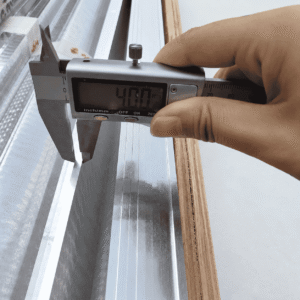

- Cell geometry, thickness, dimensions, and cutting quality are inspected during production.

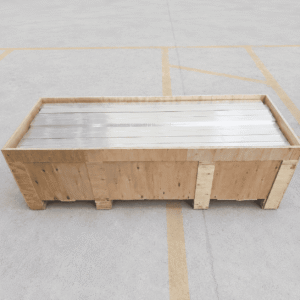

- Pre-shipment checks are completed according to the confirmed specification.
Product datasheets, inspection information, and project-specific documents are available upon request.
Related Applications
Application Areas
Inquiry Support
Request a Quote for Aluminum Honeycomb Core
Send your specifications, dimensions, application, and other technical requirements. Mex-core will review material selection, processing feasibility, and quotation requirements.
- Cell Size
- Foil Thickness
- Core Thickness
- Quantity
