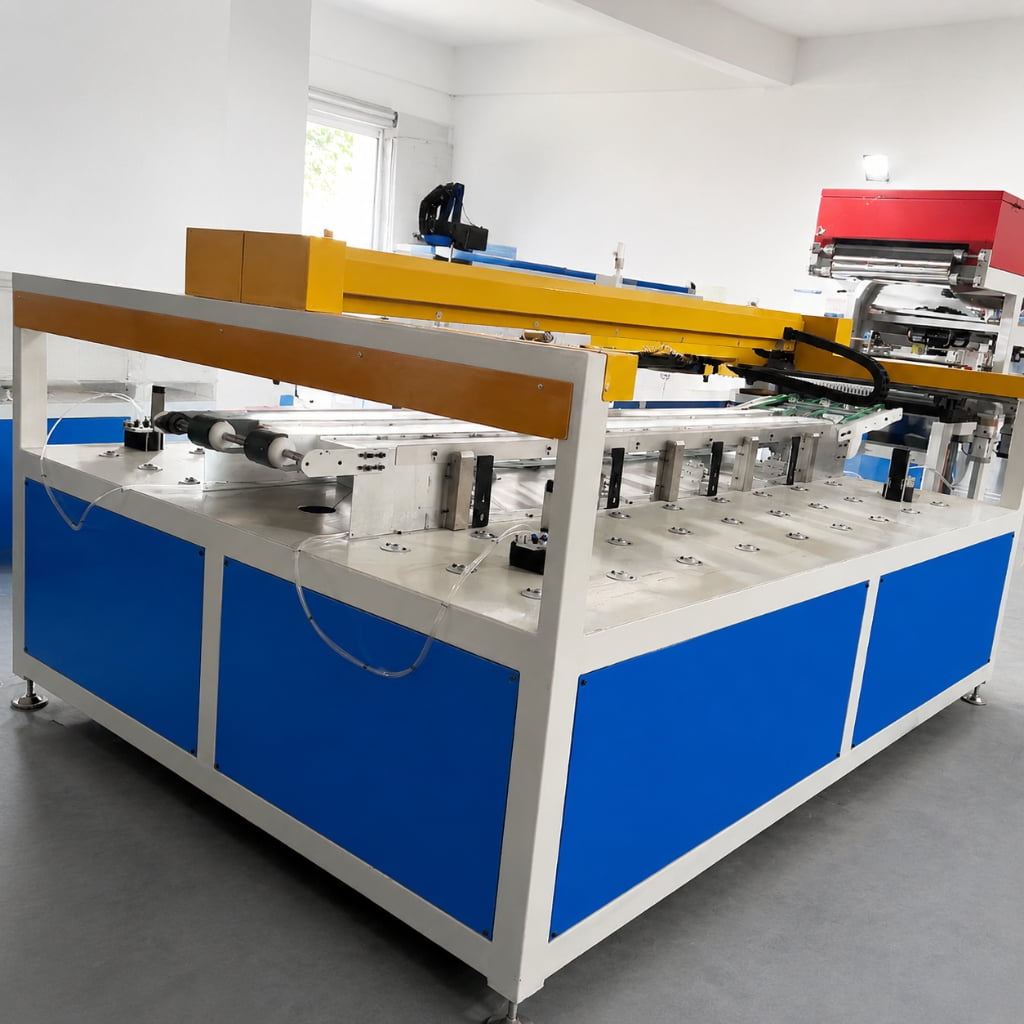

Aluminum Honeycomb Stacking Machine

The Stacking Machine receives glued and cut aluminum foil sheets from the gluing process and stacks them layer by layer into aligned honeycomb blocks. Its main purpose is to keep each foil sheet accurately positioned before hot pressing.

Good stacking accuracy is essential for producing stable honeycomb blocks, because misalignment at this stage may affect cell regularity, expansion quality, and the final appearance of the honeycomb core.

Auto Type: Auto
Foil Width: 300–600mm
Process Stage: Stacking
Suitable Material: Aluminum Honeycomb Core

Technical Data

Technical Parameters

Final parameters are confirmed according to material type, working width, target capacity, electrical standard, and project configuration.

Parameter	Value	Note
Auto Type	Auto
Foil Width	300–600mm
Cutting Length	900–3000mm
Maximum Stacking Height	≤200mm
Stacking Speed	≤25 pcs/min
Power Supply	customized
Machine Dimension	350020001000mm

Procurement Information

Scope of Supply and Project Confirmation

The final equipment scope is confirmed in the quotation and technical agreement according to the project requirements.

Standard Supply

Machine configuration, control components, standard accessories, and included items are listed in the quotation.

Optional Configuration

Options are matched to material type, width, capacity, voltage, automation, and local operating requirements.

Acceptance & Documents

Technical parameters, test items, operating documents, and acceptance requirements are confirmed before delivery.

Packing & Delivery

Packing method, shipping conditions, destination information, and installation arrangements are confirmed by project.

Project Support

Installation, Training and After-Sales Service

Training & Technical Support

Machine installation and commissioning guidance
Online video and remote technical support
Spare parts and after-sales support
Stacking program and sheet positioning setup
