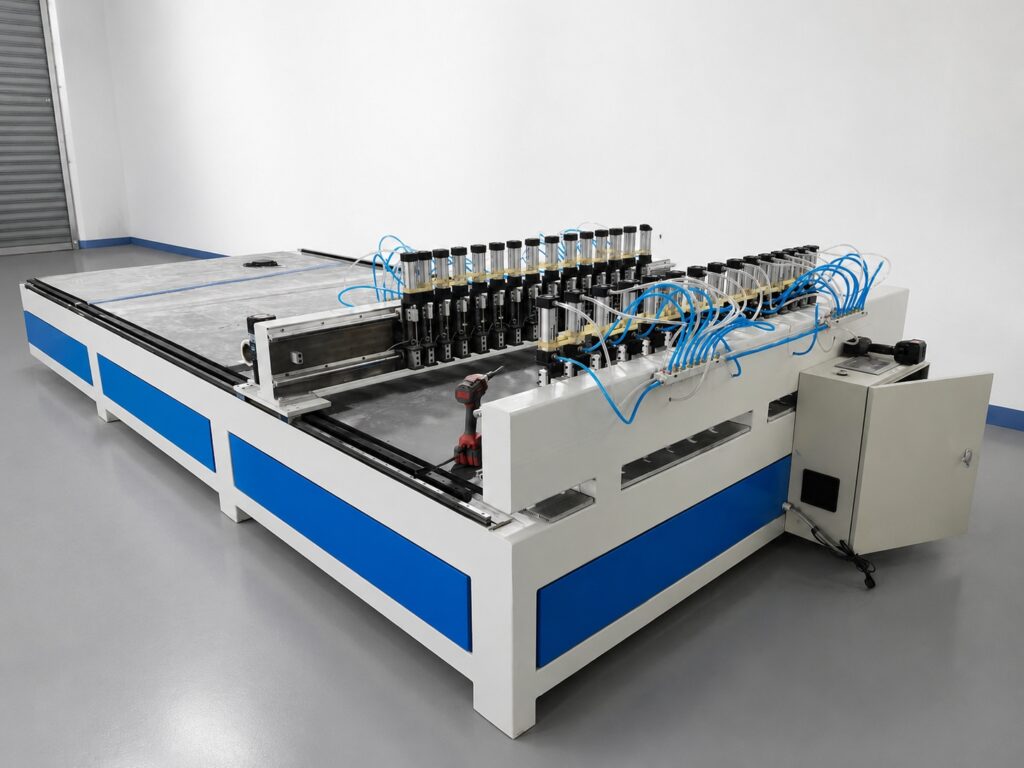

Aluminum Honeycomb Expanding Machine

The Aluminum Honeycomb Expanding Machine is used to expand bonded aluminum honeycomb slices into a uniform hexagonal cell structure. It provides controlled and consistent expansion, helping improve production efficiency and reduce dependence on manual operation.
Stable expansion also supports more regular cell geometry and better flatness, which are important for subsequent honeycomb panel bonding and processing. The machine can be configured according to the required honeycomb core specifications, target expanded dimensions, and production requirements.

Operation Mode: Manual / Automatic
Applicable Cell Size: ≥5 mm
Process Stage: Expanding
Suitable Material: Aluminum Honeycomb Core

Technical Data

Technical Parameters

Final parameters are confirmed according to material type, working width, target capacity, electrical standard, and project configuration.

Parameter	Value	Note
Operation Mode	Manual / Automatic
Applicable Cell Size	≥5 mm
Foil Thickness Range	0.03-0.08 mm
Core Thickness Range	3-100 mm	Standard: ≤70 mm; customized configuration available above 70 mm.
Standard Expanded Width	1500 mm	Other sizes available upon request.
Standard Expanded Length	4500 mm	Other sizes available upon request.
Power Supply	Customized to local electrical standard
Control System	PLC + Touch Screen
Air Requirement	0.6 Mpa

Procurement Information

Scope of Supply and Project Confirmation

The final equipment scope is confirmed in the quotation and technical agreement according to the project requirements.

Standard Supply

Machine configuration, control components, standard accessories, and included items are listed in the quotation.

Optional Configuration

Options are matched to material type, width, capacity, voltage, automation, and local operating requirements.

Acceptance & Documents

Technical parameters, test items, operating documents, and acceptance requirements are confirmed before delivery.

Packing & Delivery

Packing method, shipping conditions, destination information, and installation arrangements are confirmed by project.

Project Support

Installation, Training and After-Sales Service

Installation & Commissioning

Mex-core provides installation and commissioning support according to the machine configuration and the customer’s production setup. Support can be arranged according to the project requirements.
• Machine installation and setup guidance
• Electrical and pneumatic connection checks
• Parameter setting and commissioning assistance
• Trial operation and production setup support

Training & Technical Support

Operator training is provided to help customers understand machine operation, parameter adjustment, routine maintenance, and the key points of stable production.
• Machine operation and parameter setting
• Production workflow and operating precautions
• Routine maintenance and basic troubleshooting
• Online video and remote technical support

After-Sales Service

After delivery, Mex-core continues to provide technical assistance and spare-parts support according to the machine model and actual operating conditions.
• Remote troubleshooting and technical assistance
• Spare parts and replacement component support
• Maintenance and adjustment guidance
• Long-term technical support for equipment operation
