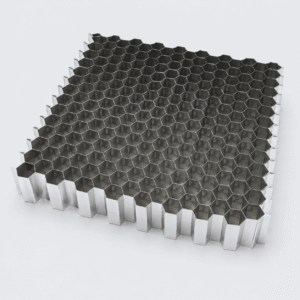

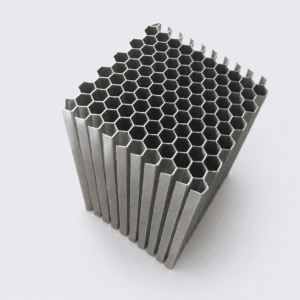

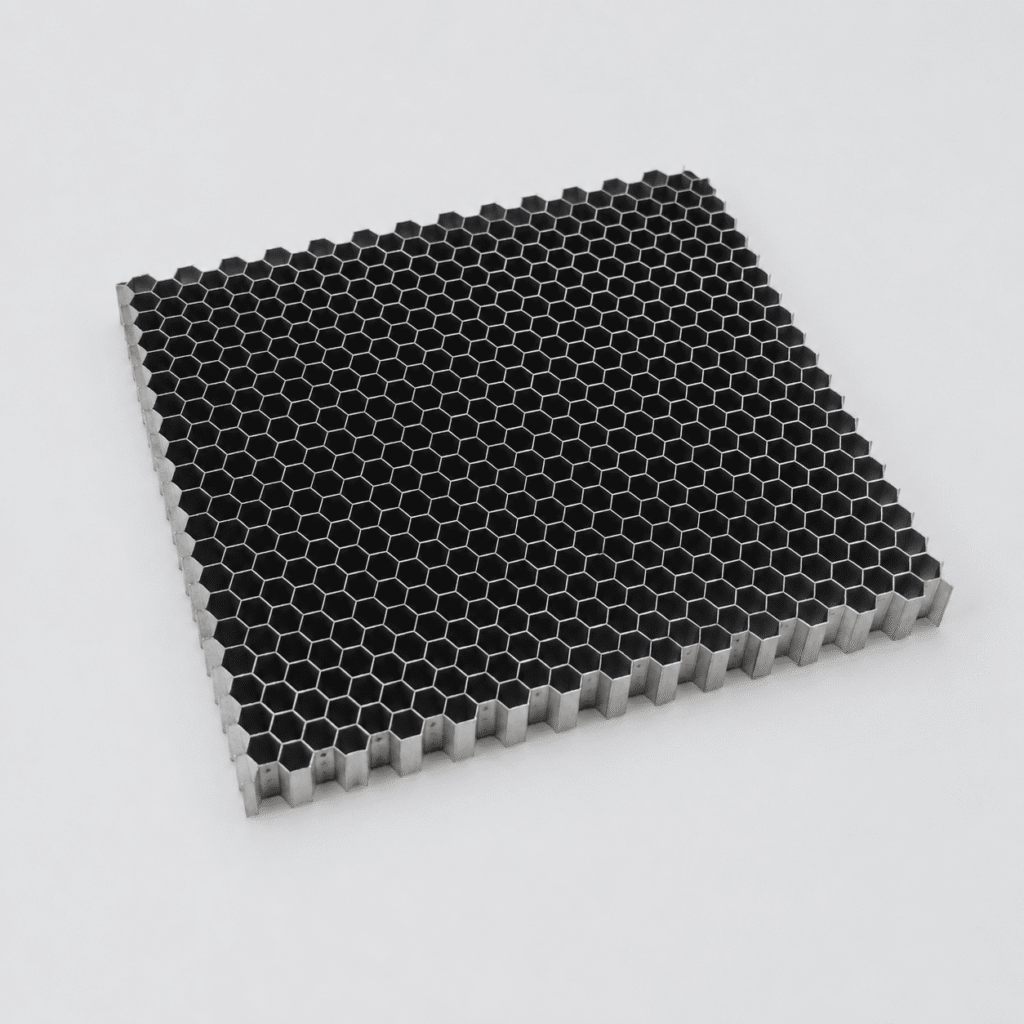

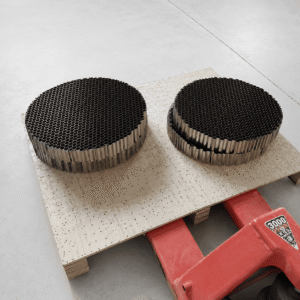

Stainless Steel Honeycomb Core
Stainless steel honeycomb core is a metallic cellular core for demanding industrial applications requiring high-temperature capability, corrosion resistance, structural durability, and electrical conductivity. It is commonly used for airflow straightening, ventilation, filtration, EMI/RFI shielding, and other harsh industrial environments.
Available in 304 and 316L stainless steel, with cell size, wall thickness, core thickness, dimensions, and optional surface plating selected according to project requirements.
Custom Specifications
Specifications, dimensions, structure, and processing requirements can be customized according to your project.
Key Features
Stable Geometry, Flexible Specifications, Reliable Processing
- High-temperature resistant stainless steel structure
- Excellent corrosion and moisture resistance
- High strength and structural rigidity
- Stable honeycomb cell geometry
- Electrically conductive metallic structure
- Fire-resistant and non-combustible construction
Technical Data
Honeycomb Core Specifications
Review the available material, cell, thickness, density, dimensional, and supply-form parameters for this honeycomb core.
| Parameter | Value | Note |
|---|---|---|
| Stainless Steel Grade | 304 / 316L | |
| Cell Size | 6 / 8 / 10 / 15 / 25 mm | Other cell sizes on request |
| Wall Thickness | 0.1 / 0.2 / 0.3 mm | Other thickness on request |
| Core Thickness | 5–100 mm | |
| Sheet Dimensions | Custom | According to drawing or project requirements |
| Surface Finish / Plating | Unplated / Nickel / Tin / Zinc / Chromium Plating | Available according to application requirements |
| Supply Form | Sheet | Available according to order requirements |
Quality & Documentation
Product-Specific Checks and Technical Documents
Each order is checked against the confirmed material specifications, dimensions and processing requirements. Relevant material documents, inspection information and technical files are available according to project requirements.
- Incoming raw material documentation is checked before production.
- Cell geometry, thickness, dimensions, and cutting quality are inspected during production.
- Pre-shipment checks are completed according to the confirmed specification.
Product datasheets, inspection information, and project-specific documents are available upon request.
Related Applications
Application Areas
Inquiry Support
Request a Quote for Stainless Steel Honeycomb Core
Send your specifications, dimensions, application, and other technical requirements. Mex-core will review material selection, processing feasibility, and quotation requirements.
- Cell Size
- Wall Thickness
- Sheet Dimension
