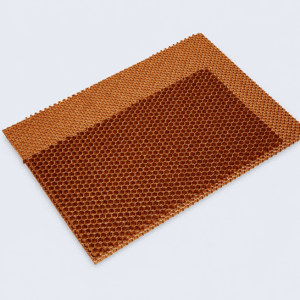

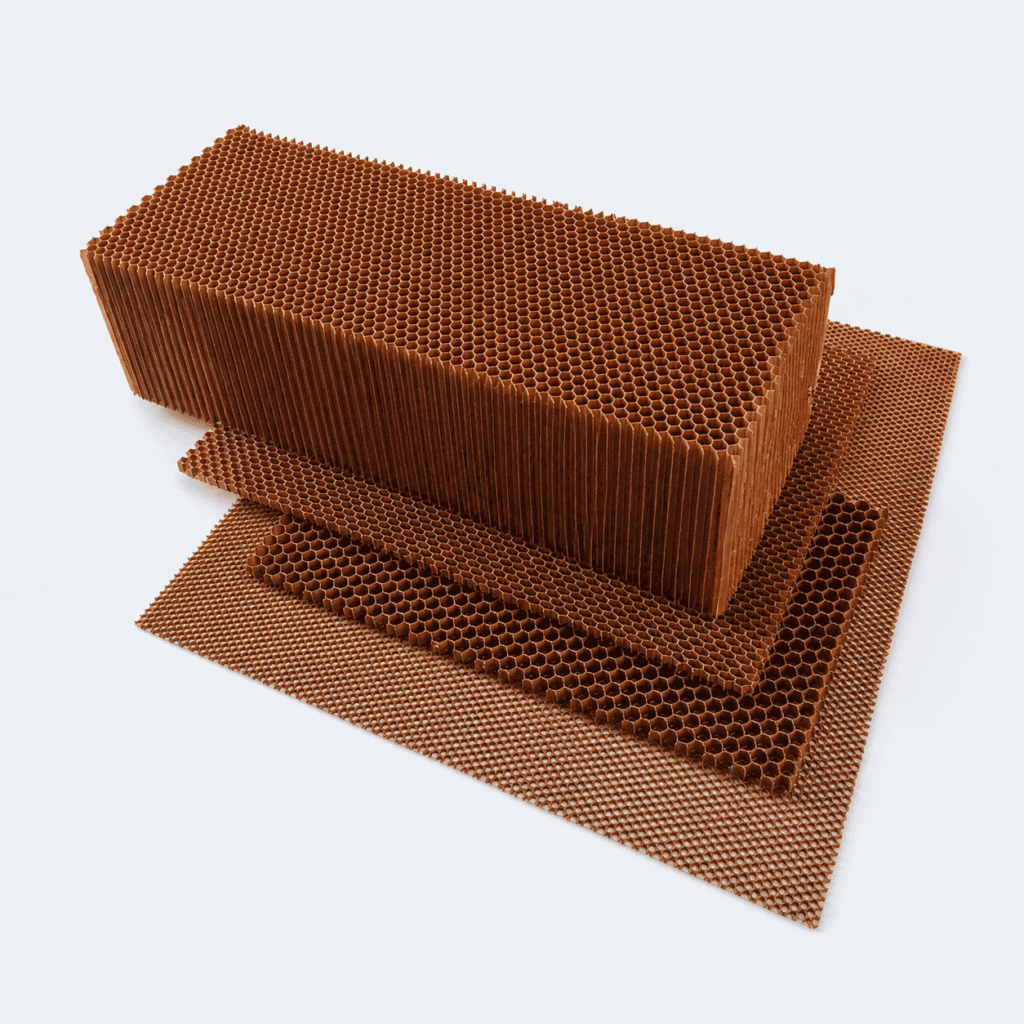

Aramid Honeycomb Core
Aramid Honeycomb Core is a lightweight, high-strength core material made from resin-treated aramid paper for advanced composite sandwich structures. It helps reduce weight while maintaining structural stiffness and reliable mechanical performance.
It is commonly used in aerospace interiors, UAV structures, radomes, railway components, marine panels, antenna covers, special vehicle parts, and other high-performance composite applications. Mex-core manufactures both industrial-grade and aerospace-grade aramid honeycomb cores using corresponding grades of raw materials. Available in a wide range of cell sizes and densities, our cores can be precision-cut to the required thicknesses and dimensions for specific project needs.
Custom Specifications
Specifications, dimensions, structure, and processing requirements can be customized according to your project.
Key Features
Stable Geometry, Flexible Specifications, Reliable Processing
- Lightweight honeycomb structure with high strength performance
- Low density for advanced composite structures
- Good stiffness and mechanical stability
- Excellent fatigue resistance and resilience
- Non-metallic core with good corrosion resistance
- Good dielectric and electrical insulation performance
Technical Data
Honeycomb Core Specifications
Review the available material, cell, thickness, density, dimensional, and supply-form parameters for this honeycomb core.
| Parameter | Value | Note |
|---|---|---|
| Paper Grade | Industrial Grade/ Aerospace Grade | |
| Cell Configuration | Regular / Over-expanded | |
| Cell Size | 3.2mm/ 4.8mm/ 6.4mm/ 9.5 mm | Or Customized |
| Density | 32/ 48/ 64/ 80/ 96/ 128 kg/m³ | Or Customized |
| Core Thickness | Custom 1~800 mm | |
| Cutting Tolerance | ±0.2 mm | |
| Dimension | 1220×2440 mm /1300×2600 mm | Or Cut to size within standard sheets |

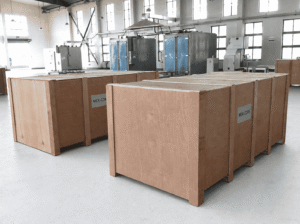

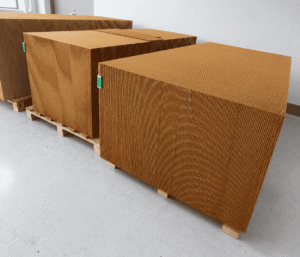

| Supply Form | Block / Sheet | Available according to order requirements |
Quality & Documentation
Product-Specific Checks and Technical Documents
Each order is checked against the confirmed material specifications, dimensions and processing requirements. Relevant material documents, inspection information and technical files are available according to project requirements.
- Incoming raw material documentation is checked before production.
- Cell geometry, thickness, dimensions, and cutting quality are inspected during production.
- Pre-shipment checks are completed according to the confirmed specification.
Related Applications
Application Areas
Inquiry Support
Request a Quote for Aramid Honeycomb Core
Send your specifications, dimensions, application, and other technical requirements. Mex-core will review material selection, processing feasibility, and quotation requirements.
- Cell Size
- Density
- Quantity
