Honeycomb Core
Paper Honeycomb Core

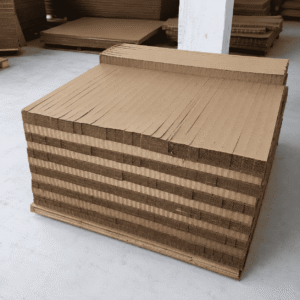

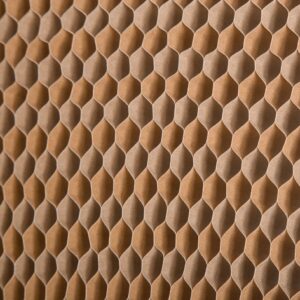

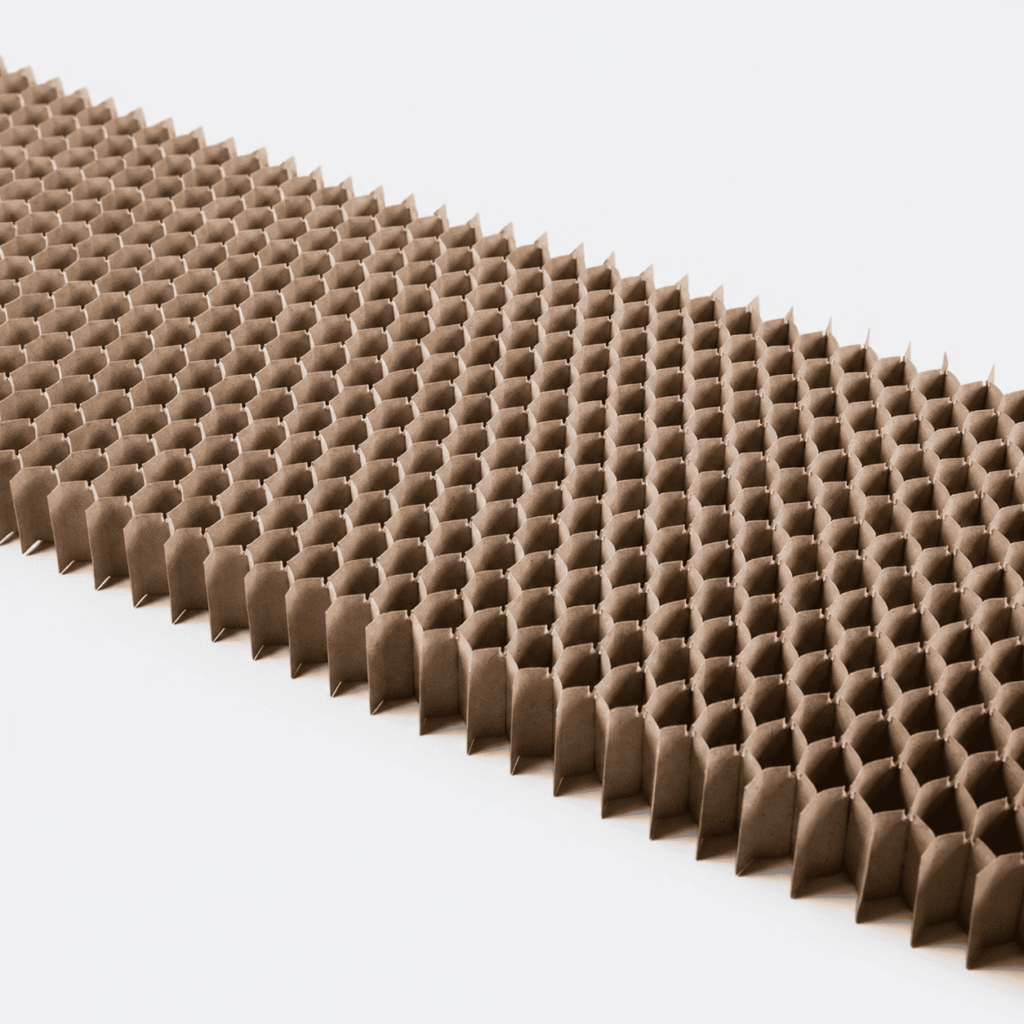

Paper honeycomb core is a lightweight and cost-effective cellular core for sandwich panels and laminated structures. Its hexagonal paper structure provides good compressive support, stable cell geometry, and a reliable base for bonding face sheets while helping reduce panel weight and material cost.
Typical applications include doors, furniture, partitions, interior panels, and other lightweight sandwich structures. Standard and flame-retardant paper options are available, with paper grammage, cell size, core thickness, and expanded dimensions selected according to project requirements.
Custom Specifications
Specifications, dimensions, structure, and processing requirements can be customized according to your project.
Key Features
Stable Geometry, Flexible Specifications, Reliable Processing
- Lightweight and cost-effective cellular structure
- Good compression support for sandwich panels
- Stable and uniform honeycomb cell geometry
- Good bonding support for laminated face sheets
- Easy to cut and process
- Paper-based structure with low material consumption
Technical Data
Honeycomb Core Specifications
Review the available material, cell, thickness, density, dimensional, and supply-form parameters for this honeycomb core.
| Parameter | Value | Note |
|---|---|---|
| Paper Type | Regular Paper / Flame-Retardant Paper | |
| Paper Grammage | 120 / 140 / 170 g/m² | |
| Cell Size | 10 / 15 / 20 / 25 mm | Other cell sizes on request |
| Core Thickness | 5–100 mm | |
| Thickness Tolerance | ±0.2 mm | |
| Expanded Dimensions | Custom | According to project requirements |
| Supply Form | Slice / Sheet | Available according to order requirements |
Quality & Documentation
Product-Specific Checks and Technical Documents
Each order is checked against the confirmed material specifications, dimensions and processing requirements. Relevant material documents, inspection information and technical files are available according to project requirements.
- Incoming raw material documentation is checked before production.

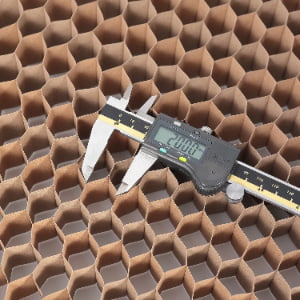

- Cell geometry, thickness, dimensions, and cutting quality are inspected during production.
- Pre-shipment checks are completed according to the confirmed specification.
Product datasheets, inspection information, and project-specific documents are available upon request.
Related Applications
Application Areas
Inquiry Support
Request a Quote for Paper Honeycomb Core
Send your specifications, dimensions, application, and other technical requirements. Mex-core will review material selection, processing feasibility, and quotation requirements.
- Paper Type / Gram
- Cell Size
- Expanded Dimensions
