Honeycomb Finished Product
Honeycomb Louver

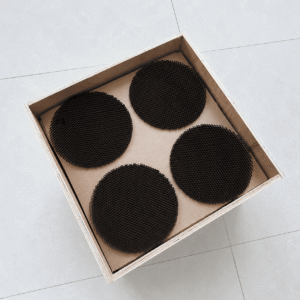

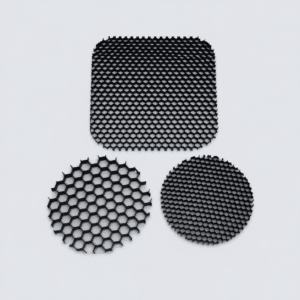

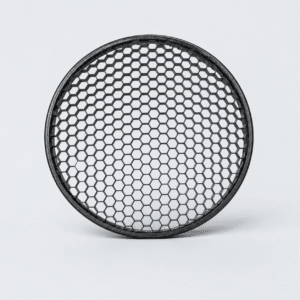

Honeycomb louver is an aluminum light-control component for professional lighting applications. Its honeycomb structure helps control light direction, reduce side glare and stray light, and improve visual comfort. It is commonly used in luminaires that require better control of side light and glare.
Cell size, louver height, frame/ring option, and overall dimensions can be customized according to the fixture design and project requirements. Round, square and rectangular versions are available with a black surface finish and can be manufactured according to drawings or samples.
Custom Specifications
Specifications, dimensions, structure, and processing requirements can be customized according to your project.
Key Features
Material Integration, Custom Dimensions, and Finished Processing
- Controlled light direction through honeycomb cell structure
- Effective reduction of side glare and dazzle
- Moisture and corrosion resistant aluminum structure
- UV-resistant black coating with good color stability
- Black surface finish helps suppress stray reflections
- Stable honeycomb geometry for consistent light control
Technical Data
Finished Honeycomb Product Specifications
Review the finished-product type, material combination, dimensions, tolerance, surface, and drawing-based requirements.
| Parameter | Value | Note |
|---|---|---|
| Finished Product Type | Honeycomb Louver | Finished component category |
| Material | Aluminum Honeycomb | |
| Typical Cell Size | 3.2 mm / 5 mm | Other cell sizes available on request |
| Typical Height | 3mm / 5mm / 10mm | Other heights available on request |
| Shape | Round / Square / Rectangular | Custom shapes available |
| Typical Outer Diameter (Round) | Ø50 / Ø75 / Ø85 / Ø100 mm | Other diameters available on request |
| Frame / Ring Option | With Ring / Without Ring | According to design |
| Surface Finish | Matte Black |
Quality & Documentation
Product-Specific Checks and Technical Documents
Each order is checked against the confirmed material specifications, dimensions and processing requirements. Relevant material documents, inspection information and technical files are available according to project requirements.
- Material combination and finished-product configuration are verified before processing.
- Dimensions, appearance, assembly details, and drawing requirements are inspected during production.
- Finished components receive pre-shipment verification and packaging checks.
Product datasheets, inspection information, and project-specific documents are available upon request.
Related Applications
Application Areas
Inquiry Support
Request a Quote for Honeycomb Louver
Send your specifications, dimensions, application, and other technical requirements. Mex-core will review material selection, processing feasibility, and quotation requirements.
- Cell Size
- Drawing / Dimensions
- Quantity
