Honeycomb Core

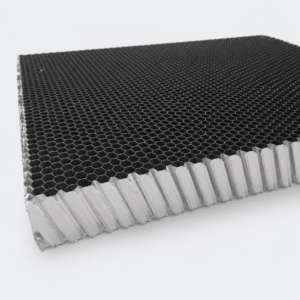

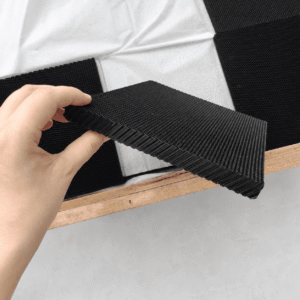

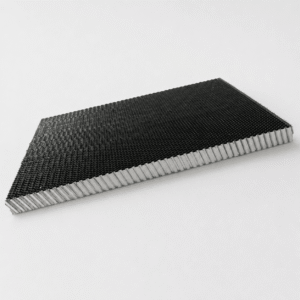

Inclined-cell Aluminum Honeycomb Core
Inclined-cell aluminum honeycomb core uses angled cell channels to guide airflow or light in a defined direction and reduce direct line of sight through the core.
It is used in ventilation, shielding, lighting, and other industrial applications where directional passage is required. Cell size, inclination angle, core thickness, and sheet dimensions can be selected according to project requirements.
Custom Specifications
Specifications, dimensions, structure, and processing requirements can be customized according to your project.
Key Features
Stable Geometry, Flexible Specifications, Reliable Processing
- Inclined honeycomb cell structure
- Directional airflow through angled cell channels
- Reduced direct line of sight through the core
- Suitable for directional light control
- Stable angled-cell geometry
- Suitable for ventilation and shielding applications
Technical Data
Honeycomb Core Specifications
Review the available material, cell, thickness, density, dimensional, and supply-form parameters for this honeycomb core.
| Parameter | Value | Note |
|---|---|---|
| Alloy Type | 3003 | |
| Cell Size | 1.8 / 2.6 / 3.2 / 3.5 mm | Other sizes on request |
| Foil Thickness | 0.025 / 0.03 / 0.04 / 0.05 mm | |
| Inclination Angle | 20° / 30° / 45° / 60° | |
| Core Thickness | Custom | According to project requirements |
| Sheet Dimensions | Custom | Cut to required dimensions |
| Supply Form | Sheet | Available according to order requirements |
Quality & Documentation
Product-Specific Checks and Technical Documents
Each order is checked against the confirmed material specifications, dimensions and processing requirements. Relevant material documents, inspection information and technical files are available according to project requirements.
- Incoming raw material documentation is checked before production.
- Cell geometry, thickness, dimensions, and cutting quality are inspected during production.
- Pre-shipment checks are completed according to the confirmed specification.
Product datasheets, inspection information, and project-specific documents are available upon request.
Related Applications
Application Areas
Inquiry Support
Request a Quote for Inclined-cell Aluminum Honeycomb Core
Send your specifications, dimensions, application, and other technical requirements. Mex-core will review material selection, processing feasibility, and quotation requirements.
- Inclination Angle
- Cell Size
- Dimension
