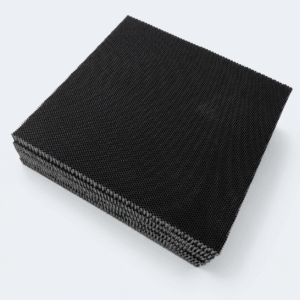

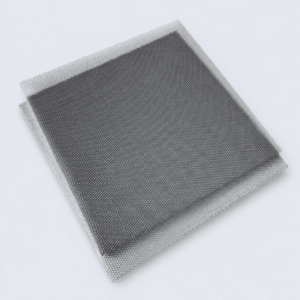

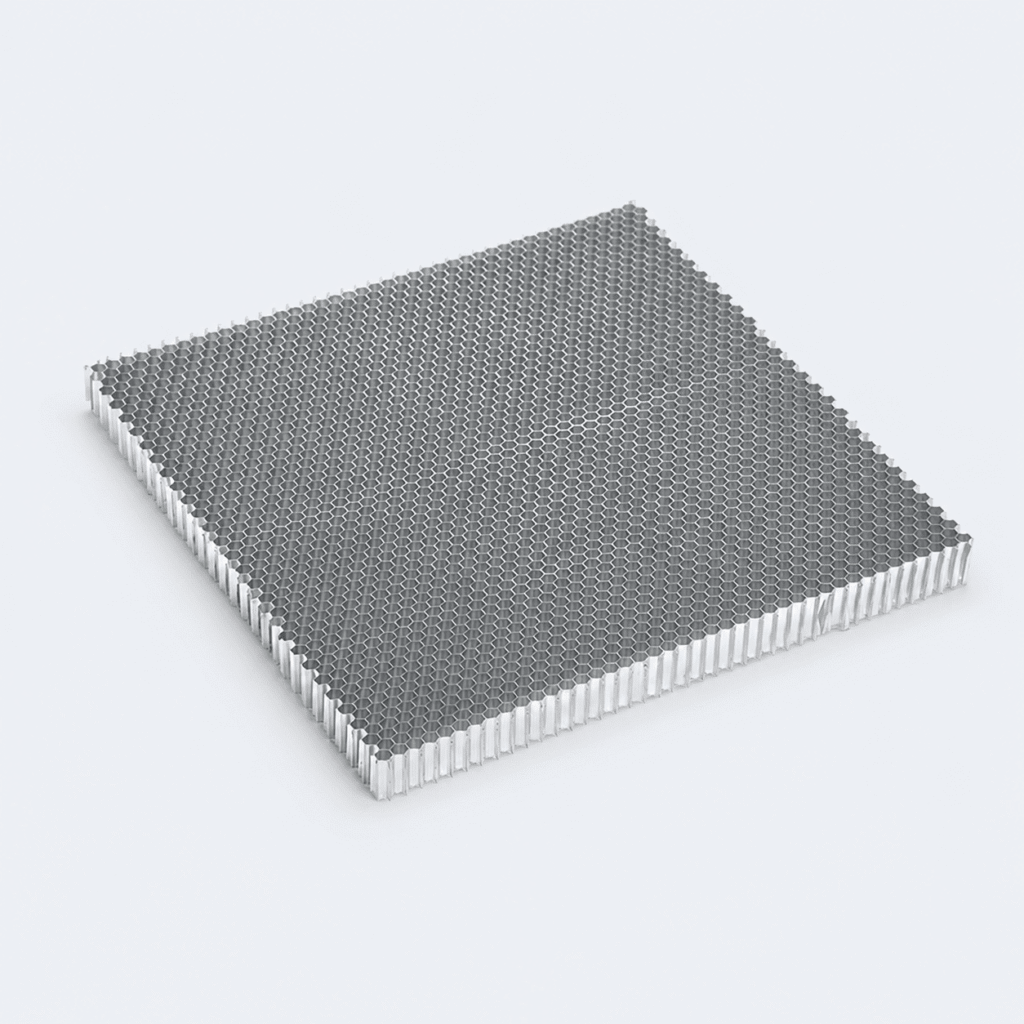

Micro-cell Aluminum Honeycomb Core
Micro-cell aluminum honeycomb core features very small, uniform cells for applications requiring fine airflow control, light control, filtration support, and EMI/RFI shielding. Its small-cell structure provides stable geometry and consistent channel distribution in compact assemblies.
Cell size, foil thickness, core thickness, and sheet dimensions can be customized according to project requirements.
Custom Specifications
Specifications, dimensions, structure, and processing requirements can be customized according to your project.
Key Features
Stable Geometry, Flexible Specifications, Reliable Processing
- Fine and uniform micro-cell structure
- Stable and regular cell geometry
- Consistent cell channels throughout the core
- Aluminum construction with good corrosion resistance
- Compact honeycomb structure with very small cell sizes
- Good airflow distribution through uniform channels
Technical Data
Honeycomb Core Specifications
Review the available material, cell, thickness, density, dimensional, and supply-form parameters for this honeycomb core.
| Parameter | Value | Note |
|---|---|---|
| Alloy Type | 3003 | |
| Cell Size | 0.87 / 1.04 / 1.38 / 1.73 / 2.6 / 3.2 mm | Other cell sizes on request |
| Foil Thickness | 0.025 / 0.03 / 0.04 / 0.05 / 0.06 / 0.07 / 0.08 mm | |
| Core Thickness | Custom: 2-100 mm | |
| Sheet Dimensions | Custom | |
| Cutting Tolerance | ±0.1 mm | |

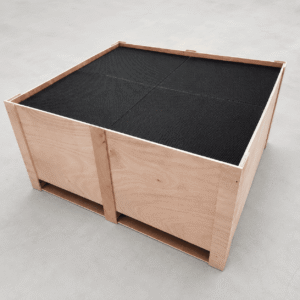

| Supply Form | Block / Slice / Sheet | Available according to order requirements |
Quality & Documentation
Product-Specific Checks and Technical Documents
Each order is checked against the confirmed material specifications, dimensions and processing requirements. Relevant material documents, inspection information and technical files are available according to project requirements.
- Incoming raw material documentation is checked before production.
- Cell geometry, thickness, dimensions, and cutting quality are inspected during production.
- Pre-shipment checks are completed according to the confirmed specification.
Product datasheets, inspection information, and project-specific documents are available upon request.
Related Applications
Application Areas
Inquiry Support
Request a Quote for Micro-cell Aluminum Honeycomb Core
Send your specifications, dimensions, application, and other technical requirements. Mex-core will review material selection, processing feasibility, and quotation requirements.
- Cell Size
- Sheet Size
- Quantity
